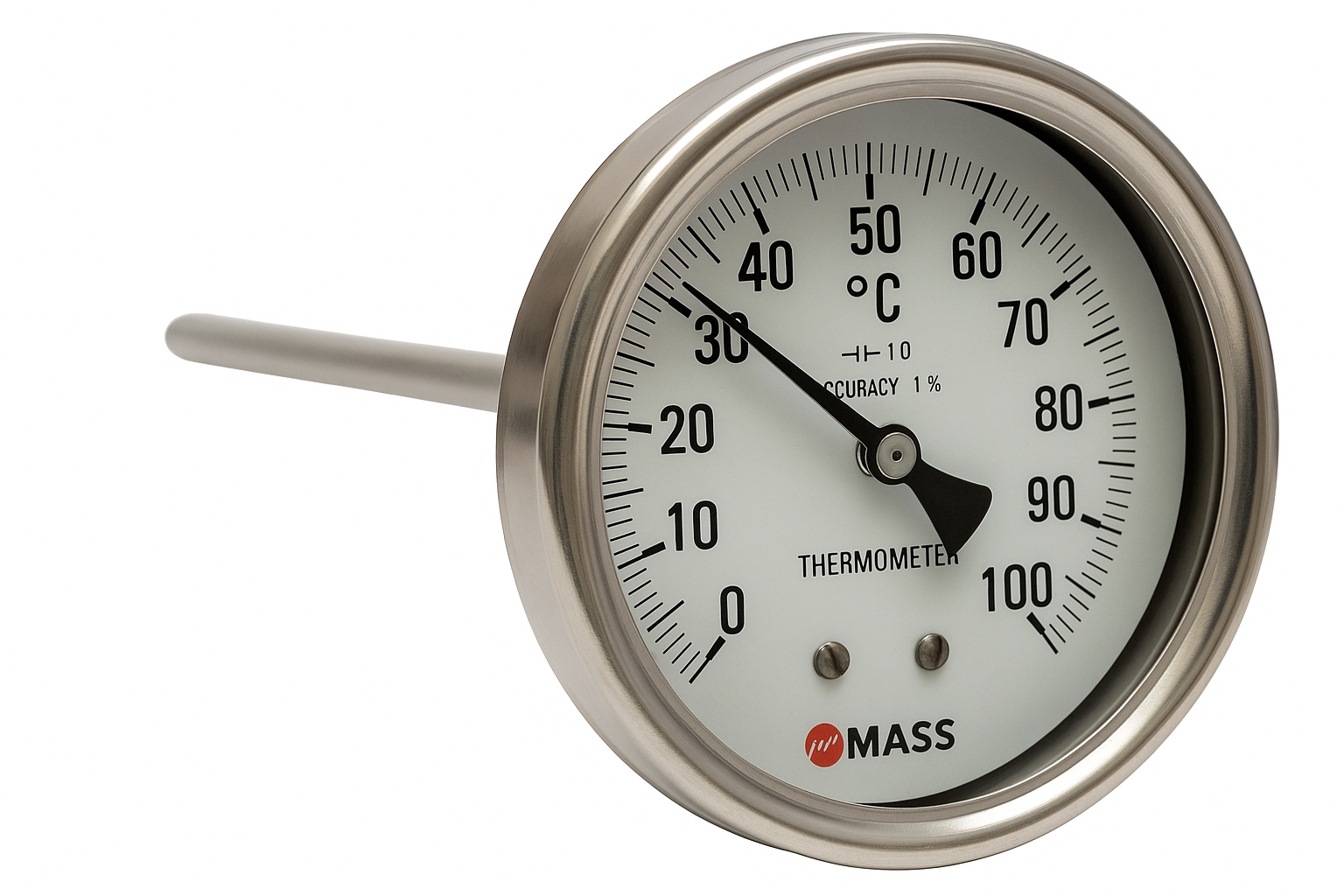

Bi-Metallic Temperature Gauge
Category : TEMPERATURE
Sub Category :
Temperature Gauge
Share:
Specification
| BIMETAL TEMPERATURE GAUGE | |
| Dial Size | 63 mm (2.5"), 100mm (4"), 150mm (6") |
| Construction | Cylindrical case with bayonet ring |
| Measuring principle | Bimetallic coil |
| Range in °C | 0 to 300 °C |
| Max. process over temperature | Max. 130 % F.S |
| Stem Diameter | 6 mm, 8 mm, 10 mm, 12 mm, others on request |
| Stem Length | 63 ... 1000 mm, minimum length depends on range, |
| Process connection | Plain, 1/2” 3/4” 1” BSP / NPT (M) fixed or adjustable |
| Connection location | Lower / Back / Every angle (rotatable) |
| Material | |
| Connection | Stainless steel 316 |
| Stem | Stainless steel 316L |
| Case/ring | Stainless steel 304, optional 316L |
| Window | Instrument glass, optional laminated safety glass |
| Dial | Aluminum, black markings on white background |
| Pointer | Aluminum, black |
| Accuracy | Class 1 as per EN 13190 |
| Ambient temperature | -25 ... 80 °C |
| Storage temperature | -40 ... 60 °C |
| Protection | IP65 / IP66 / IP67 / IP68 |
| Filling liquids | Silicone, not for lower connection, maximum range up to 300 °C |
| Accessories, options | Thermowells, dual scale |
