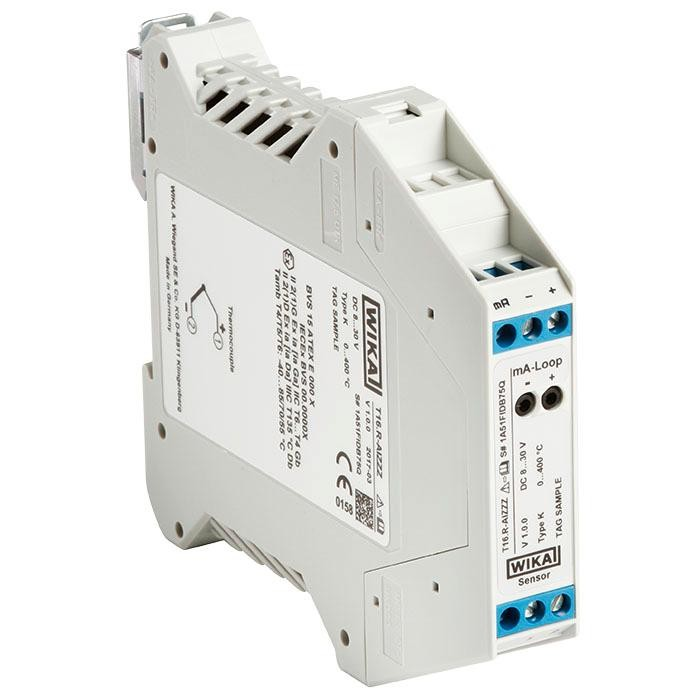

DIN Rail Type Temperature Transmitter
Category : TEMPERATURE
Sub Category :
Temperature Transmitter
Share:
SPECIFICATION
| DIN Rail Type Temperature Transmitter | |
| Input type | Thermocouple, RTD |
| Output Signal | 4-20mA and 4-20mA+Hart |
| Resistor Load (mA output) | RL ≤ (U2-11)/0.021 |
| Accuracy | ± 0.1%FS (HART) / ± 0.2FS% |
| Temperature shift | 0.0075%FS/℃ |
| Min. Resolution | 0.1℃ |
| Cold junction -compensation | - 10 to 50℃ |
| Cold junction-comp. accuracy | ± 1℃ |
| Response time | ≤ 1second |
| Isolation (HART) | Input-output-power 2KV, 1min, 50Hz |
| Isolation (Standard) | Input-output-power 1.5KV, 1min, 50Hz |
| Circuit limit | ≤ 22mA |
| Saturation current | Low: 3.8mA, 21mA |
| Power supply | DC12-40V |
| Power Consumption | ≤ 1W (1 input 1Output); ≤ 1.4W(2Input2Output) |
| Electromagnetic compatibility | Compliant with industrial equipment application equipment (IEC 61326-1) |
| Case material/Class | PC/IP20 |
| Size | 121.2 x 108 x 13mm |
| Working condition | -20 to 60℃; 25% to 85% RH |
| Storage temperature | -20 to 60℃ (No dew) |
