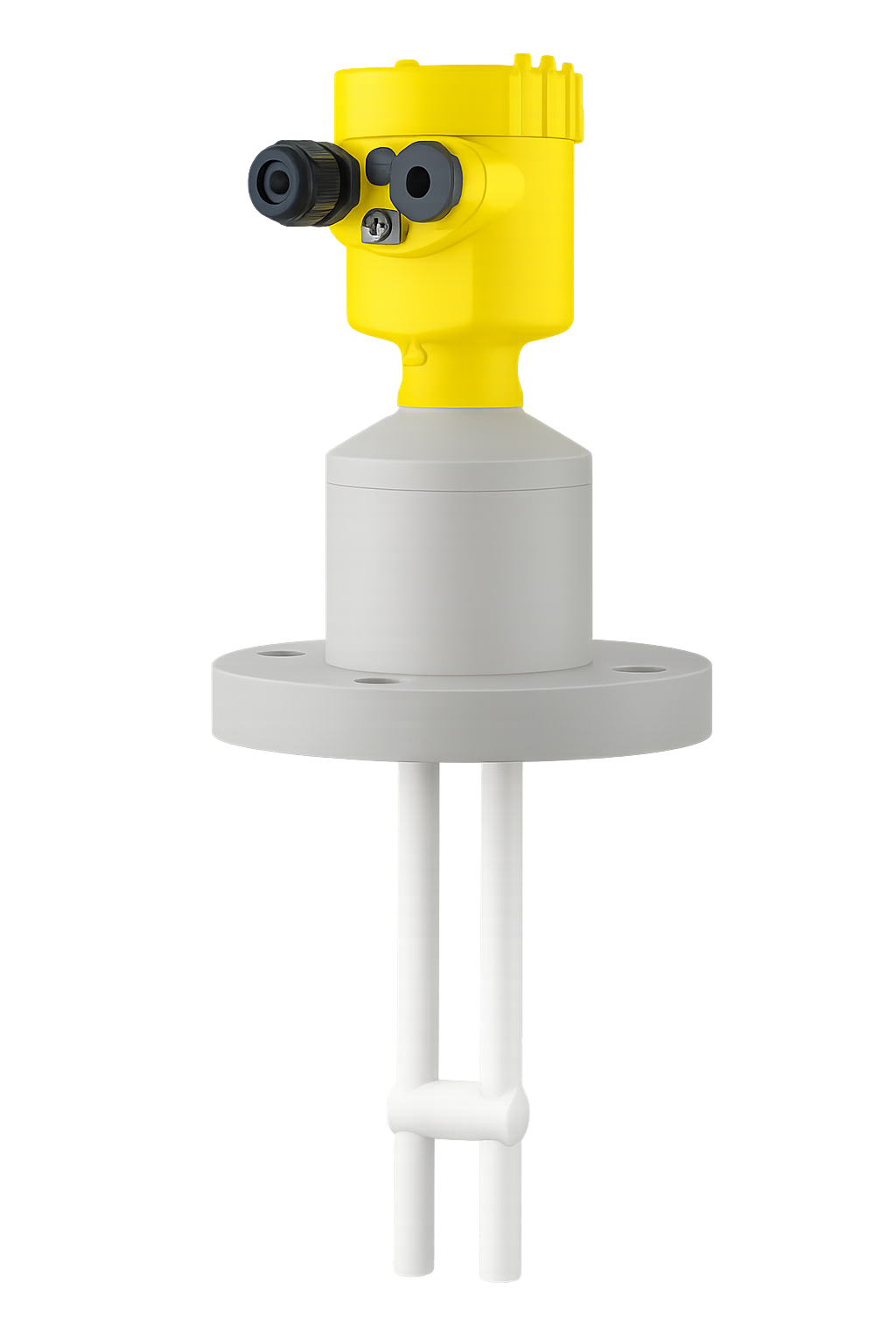

Capacitive Level Transmitter

Category :  LEVEL
Sub Category :  Level Transmitter
Share:

SPECIFICATION



CAPACITIVE LEVEL TRANSMITTER

Measuring range - Distance

4 m [Meter - Foot]
Process temperature -50 ... 100 °C [°C - °F]
Process pressure 1 ... 2 bar [Bar - kPa - psi]
Accuracy ± 2 mm
Version FEP Insulation
Materials, wetted parts 316L
Alloy C22 (2.4602)
316
Flange connection ≥ DN50, ≥ 2"
Seal material no media contact
Housing material Plastic
Protection rating IP66/IP67
Output Profibus PA
Foundation Fieldbus
Two-wire: 4 … 20 mA/HART
Ambient temperature -40 ... 80 °C
