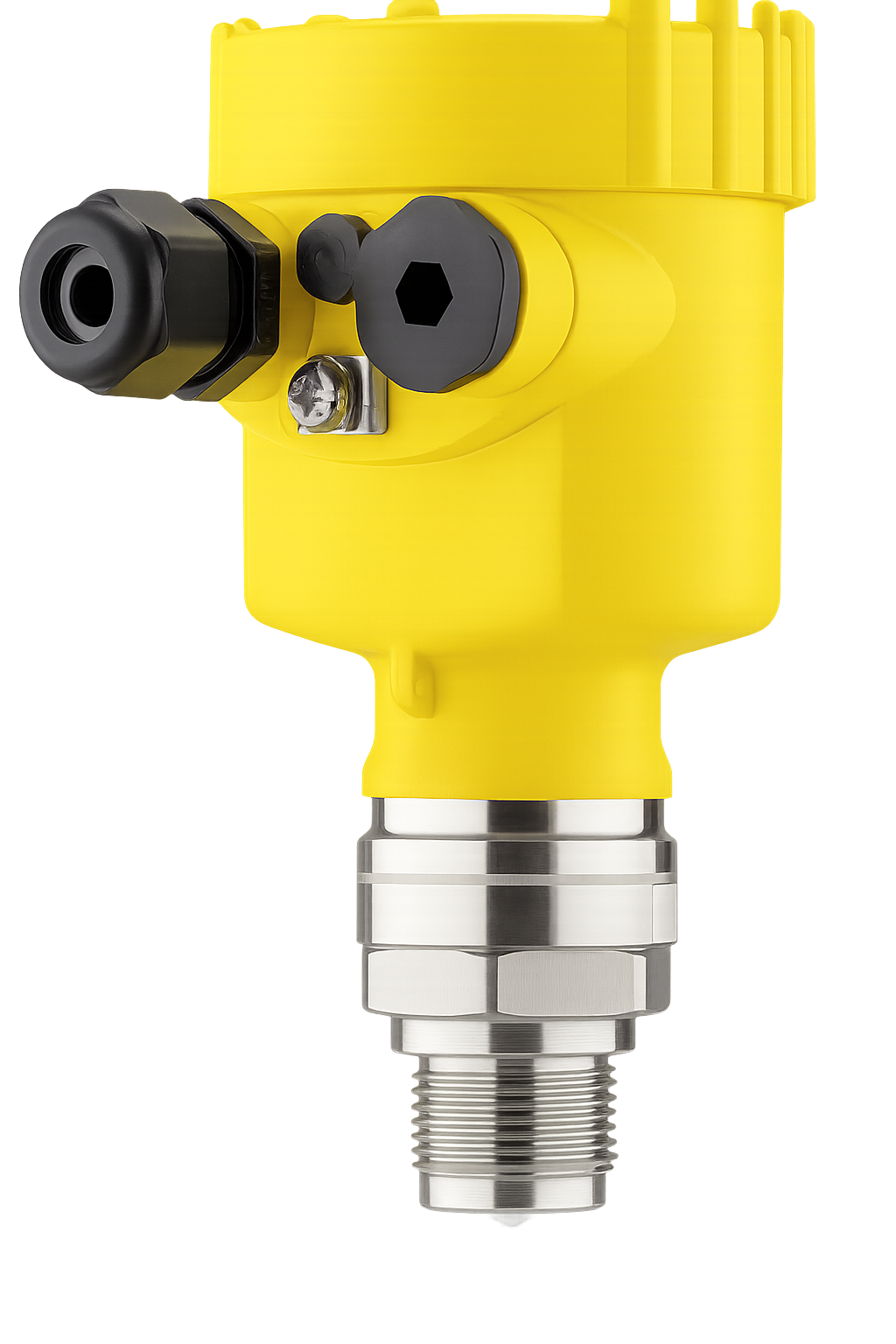

Radar Level Transmitter
Category : LEVEL
Sub Category :
Level Transmitter
Share:
SPECIFIATION
| RADAR LEVEL TRANSMITTER | |
|
Measuring range - Distance |
120 m [Meter - Foot] |
| Process temperature | -196 ... 450 °C [°C - °F] |
| Process pressure | -1 ... 160 bar [Bar - kPa - psi] |
| Accuracy | ± 1 mm |
| Frequency | 6 GHz 26 GHz 80 GHz |
| Beam angle | ≥ 3° |
| Materials, wetted parts | PTFE PVDF 316L PP PEEK |
| Threaded connection | ≥ G¾, ≥ ¾ NPT |
| Flange connection | ≥ DN20, ≥ ¾" |
| Hygenic fittings | Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 2", DN50 - DIN 11851 Varivent ≥ DN25 hygienic fitting with tension flange DN32 hygienic fitting F40 with compression nut Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A Hygienice flange connection ≥ DN50 DIN11864-2 Hygienic clamp connection ≥ DN50 pipe Ø53 - DIN11864-3-A DRD connection ø 65 mm SMS 1145 DN51 |
| Seal material | EPDM FKM FFKM graphit and ceramic PTFE |
| Housing material | Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) |
| Protection rating | IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) IP69 |
| Output | Profibus PA Two-wire: 4 … 20 mA/HART Modbus Four-wire: 4 … 20 mA/HART Ethernet APL |
| Ambient temperature | -40 ... 80 °C |
