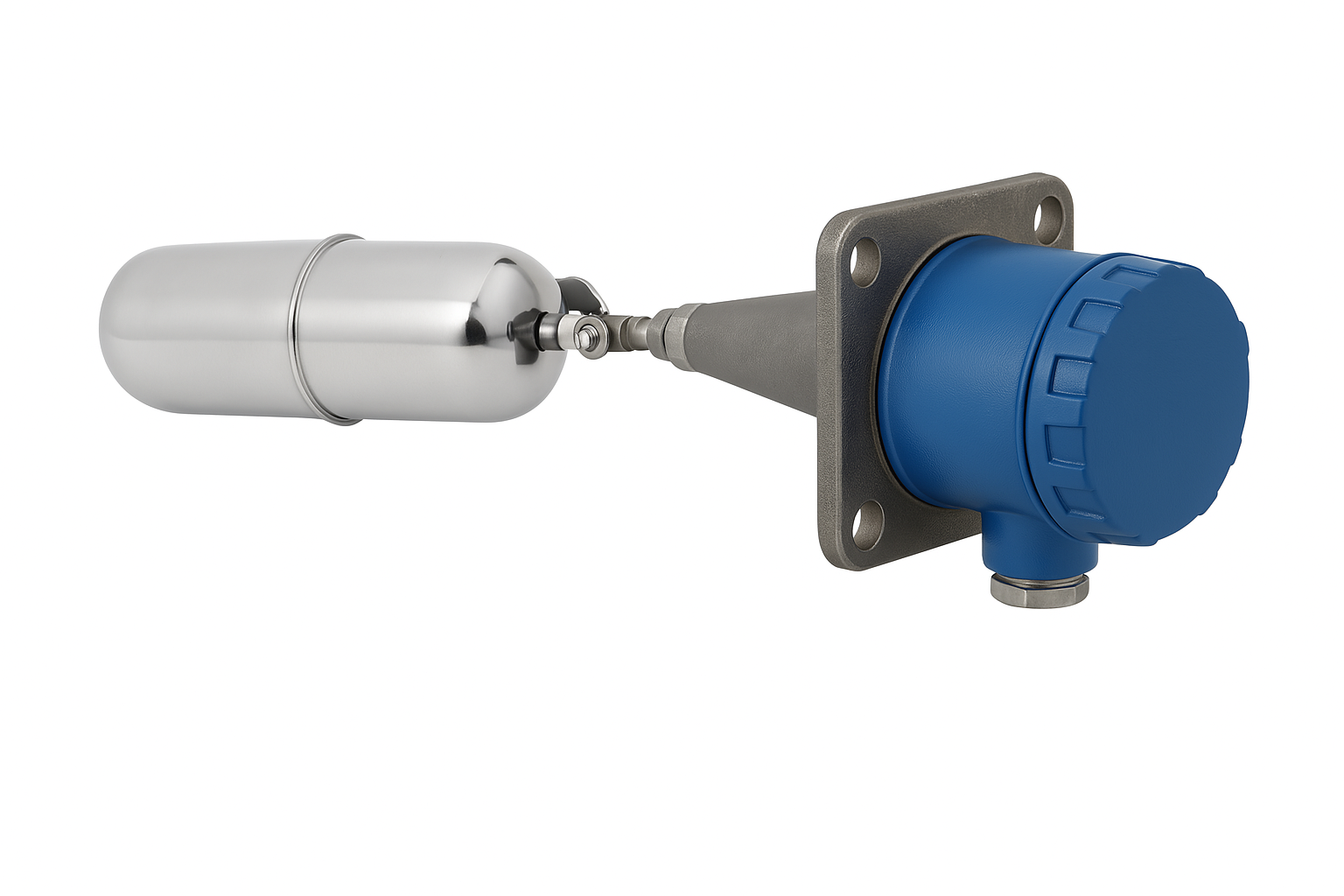

Side Mounted Level Switch
Category : LEVEL
Sub Category :
Level Switch
Share:
SPECIFICATION
| SIDE MOUNTED LEVEL SWITCH | |
| Process temperature | 20 ... 350 °C [°C - °F] |
| Process pressure | 1 ... 20 bar [Bar - kPa - psi] |
| Materials, wetted parts | Stailness Steel 304 Stailness Steel 316 PP PVDF |
| Liquid Density | ≥0.6 g/cm3 |
| Contacts | 5A, 250VAC x SPDT/DPDT |
| Enclosure | Cast Al x IP66 or Ex-P IIB/C |
| Options | Small/Large floats & screwed/flange process connections |
