We are a dedicated team of professionals with deep expertise in industrial instrumentation and process control. With years of industry experience, Canton has earned the trust of clients across manufacturing, oil & gas, chemicals, pharmaceuticals, and automation sectors. We aim to bridge the gap between technology and industry by delivering tools that perform under pressure—literally.
Products
Products

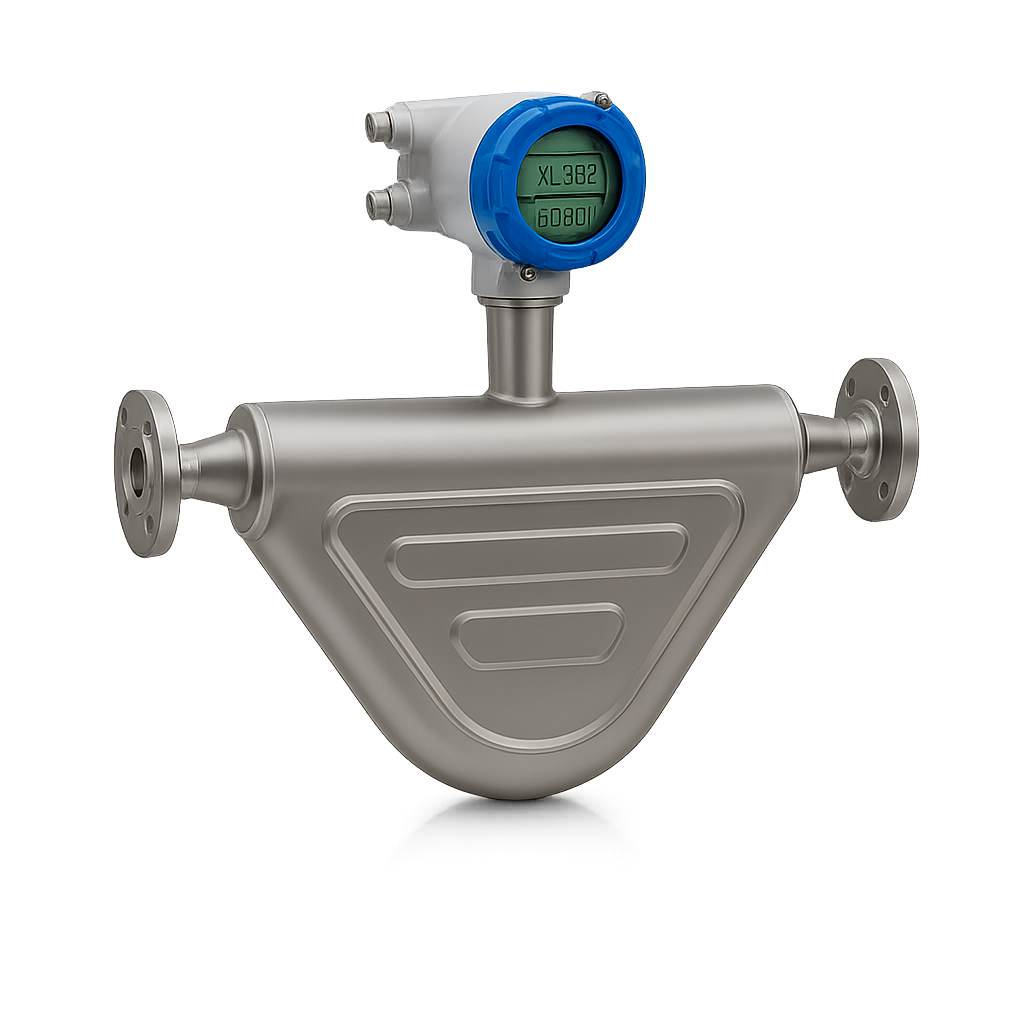

Coriolis Mass Flowmeter
Category : FLOW
Sub Category :
Flowmeter
Share:
SPECIFICATION
| CORIOLIS MASS FLOWMETER | |
|
General information |
|
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For advanced process and custody transfer (CT) applications |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
|
Operating conditions |
|
| Process pressure | max. 200 barg/ |
| 2900 psig | |
| Process temperature | -200…+400°C/ |
| -328…+752°F | |
|
Materials |
|
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic alloy (2.4602/Alloy 22), Duplex stainless steel (1.4462/318) |
|
Process connections |
|
| Flange connections | EN (1092-1): DN10…300 |
| ASME (B 16.5): ½…12" | |
| JIS (B 2220): 10…100A | |
| Hygienic connections | Clamp (DIN 32676): DN15, DN25, DN40, DN50, DN80, DN100 |
| Clamp (ISO 2852): 25, 40, 51, 76.1, 101.6 | |
| Tri-Clamp: ½", ¾", 1", 1½", 2", 3", 4" | |
| Threaded ferrule (DIN 11851): DN15, DN25, DN40, DN50, DN80, DN100 | |
| Flange with groove (DIN 11864-2): DN15, DN25, DN40, DN50, DN80, DN100 | |
| Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm, 101.6 mm | |
|
Approvals/Standards |
|
| Certificates/Approvals Others | NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Safety | SIL 2/3 |
|
Communication |
|
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth |
