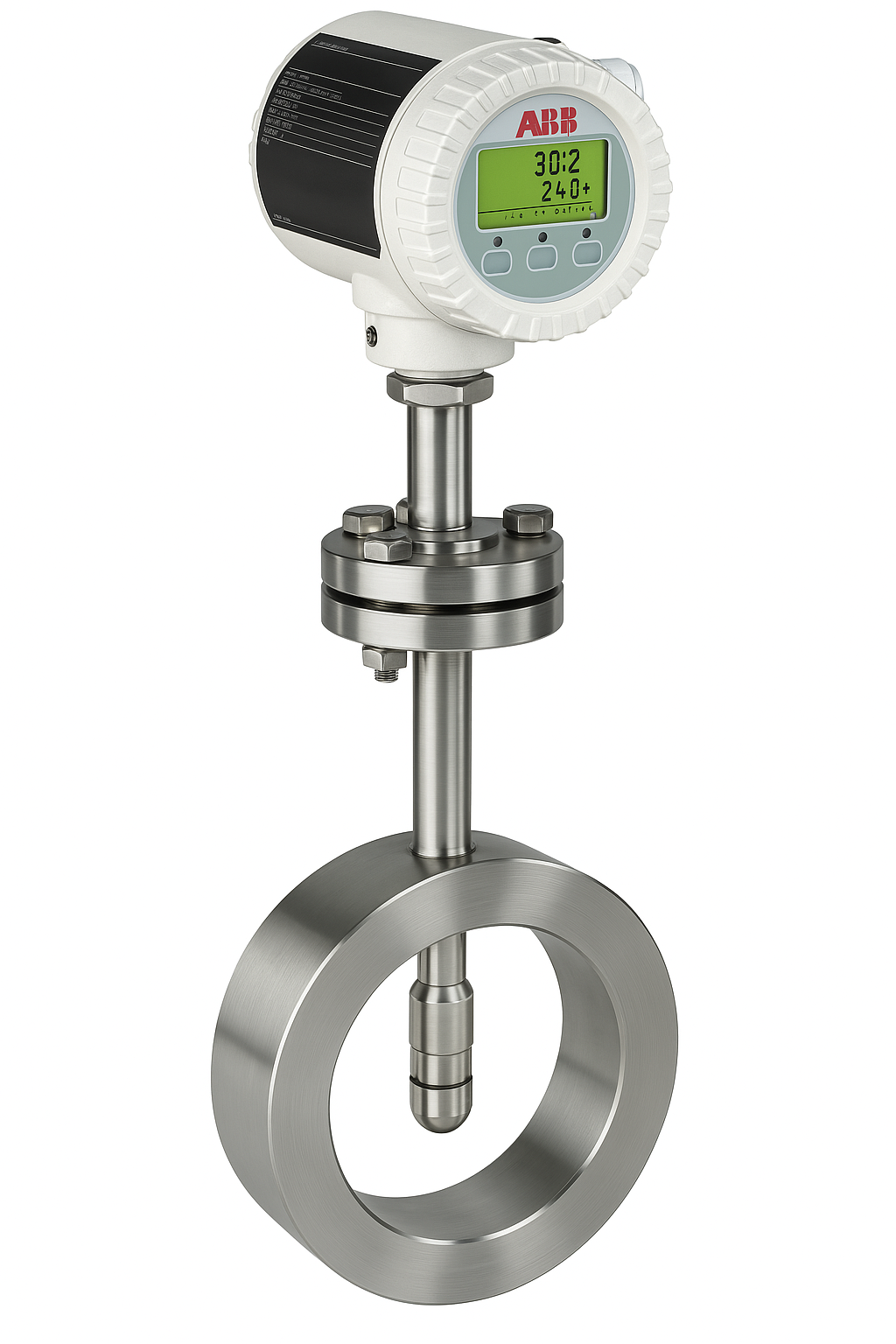

Thermal Mass Flowmeter
Category : FLOW
Sub Category :
Flowmeter
Share:
SPECIFICATION
| THERMAL MASS FLOWMETER | |
|
General information |
|
| Measuring media | Air, Nitrogen, Oxygen, Carbon dioxide, Methane, Hydrogen, Natural Gas, Biogas, Helium, Argon, Propane, Ethane, Ethene, Butane, Ammonia, more gas types on request |
| measuring accuracy for air under reference conditions | ±1.2 % of rate within 10 … 100 % of measuring range ±0.12 % full scale within 1 … 10 % of the measuring range |
| measuring accuracy for gases under reference conditions | with optional process gas calibration ±1.6 % of rate ±0.1 % full scale |
| service voltage | 5~24VDC/230 VAC/battery |
| Integral and remote mount transmitter design | single and dual compartment transmitter housing options |
| Measuring medium temperature | -25 … 150 °C (-13 … 302 °F) |
| Ambient temperature | -20 … 70°C ( -4 … 158°F) optional -40 … 70 °C (-40 … 158 °F) optional -50 … 70 °C (-58 … 158 °F) |
| Power Supply | 100 to 240 V AC, 50 / 60 Hz 24 V DC, +/- 20 % |
| Process adaption via pipe components in different designs | DN 25…..DN 3000 |
| Sensor Element Type / Temperature Range of Measuring Medium |
Ceramic sensor elements / Standard temperature range −20 to 150 °C (−4 to 302 °F) Ceramic sensor elements / High temperature range −20 to 300 °C (−4 to 572 °F) Ceramic sensor elements / Low temperature range −40 to 150°C (−40 to 302°F) |
| Mounting Length / Flowmeter Sensor Material | 120 mm (4.7 in) / AISI 316Ti SST (1.4571) (DN 25 to DN 125 [1 to 5 in]) 263 mm (10.4 in) / AISI 316Ti SST (1.4571) (DN 25 to DN 350 [1 to 14 in]) 425 mm (17 in) / AISI 316Ti SST (1.4571) (> DN 350 to DN 700 [> 14 to 28 in]) 775 mm (31 in) / AISI 316Ti SST (1.4571) (> DN 700 [> 28in]) |
| Sensor Connection | Flange DN 25, nominal pressure 4 MPa (40 bar, 580 psi) Compression fitting, stainless steel, nominal pressure 2 MPa (20 bar, 290 psi) (−40 to 150 °C (−40 to 302 °F)) (≥ DN80 (≥ 3 in)) Thread DIN 11851 (PN 10), nominal pressure 1.6 MPa (16 bar, 232 psi) (−20 to 140 °C (−4 to 284 °F)) |
| Connection Design / Transmitter Housing Type / Transmitter Housing Material / Cable Glands |
Integral / Single compartment / Aluminium / 3 × M20 × 1.5 Integral / Single compartment / Aluminium / 3 × NPT ½ in Integral / Dual compartment / Aluminium / 3 × M20 × 1.5 Integral / Dual compartment / Aluminium / 3 × NPT ½ in Integral / Dual compartment / Aluminium / 3 × NPT ½ in (Exd, XP) Integral / Dual compartment / Aluminium / 3 × M20 × 1.5 (Exd, XP) Remote (Selection for remote transmitter) Without Transmitter |
| Connection Design / Sensor Housing Type / Sensor Housing Material / Cable Glands |
Remote / Single compartment / Aluminium / 1 × M20 × 1.5 Remote / Single compartment / Aluminium / 1 × NPT ½ in Remote / Single compartment / Stainless Steel / 1 × M20 × 1.5 Remote / Single compartment / Stainless Steel / 1 × NPT ½ in Without |
| Outputs | Current output 1 (active or passive), digital output 1 & 2 (passive), HART Current output 1 (active or passive), digital output 1 & 2 (passive) current output 2 (passive), HART Current output 1 (active or passive), digital output 1 & 2 (passive), digital Input (passive), HART Current output 1 (active or passive), digitial output 1 & 2 (passive), HART, MODBUS Current output 1 (active or passive), digitial output 1 & 2 (passive), HART, PROFIBUS DP Without (Remote TX or replacement Sensor) |
