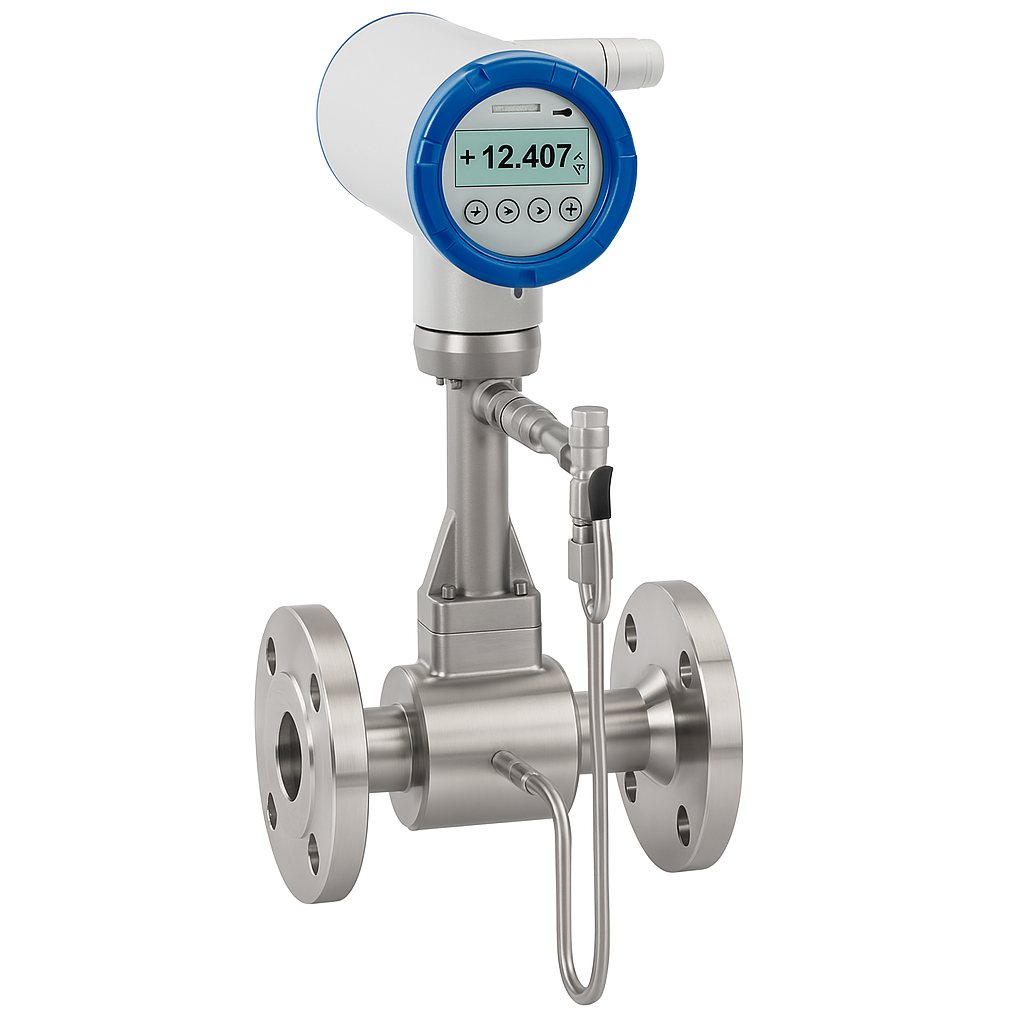

Vortex Flowmeter
Category : FLOW
Sub Category :
Flowmeter
Share:
SPECIFICATION
|
VORTEX FLOWMETER |
|
| Housing Type / Housing Material / Thread for Cable Glands | Aluminum / 2 pcs. metric, M20 × 1.5, cable glands mounted Aluminum / 2 pcs. ½ in NPT threads, cable glands not included Stainless steel 316L / 2 pcs. metric, M20 × 1.5, cable glands mounted Stainless steel 316L / 2 pcs. ½ in NPT threads, cable glands not included |
| Meter size | DN 25…....DN 300 |
| Accuracy | 1.0 % |
| Process Connection Type | Flanges Wafer |
| System Design | Integral single sensor Remote single sensor, 5 m (16 ft) signal cable included Integral dual sensor Remote dual sensor, 2 x 5 m (16 ft) signal cable included |
| Sensor Temperature Range | Standard (max 280 °C / 536 °F) Extended (max 400 °C / 752 °F) |
| Outputs | HART digital communication and 4 to 20 mA HART digital communication, 4 to 20 mA + digital contact output Modbus communication with digital contact output PROFIBUS PA FOUNDATION fieldbus Ethernet-APL |
| Piezo Sensor Sealing Material | PTFE (−20 to 260 °C / −4 to 500 °F) Kalrez 6375 (−20 to 275 °C / −4 to is 527 °F) Graphite (−55 to 400 °C / −67 to 752 °F) |
| Sensor Material | Piezo sensor material Hastelloy C-4 All inner parts material Hastelloy C-4 All wetted parts material Hastelloy C-4 |
| Protection Class Transmitter / Protection Class Sensor | IP 67 / IP 67 |
| Display | With Display and Glass Cover With Integrated LCD Display with Push Buttons TTG SmartHMI-with backlight & new TTG operation |
