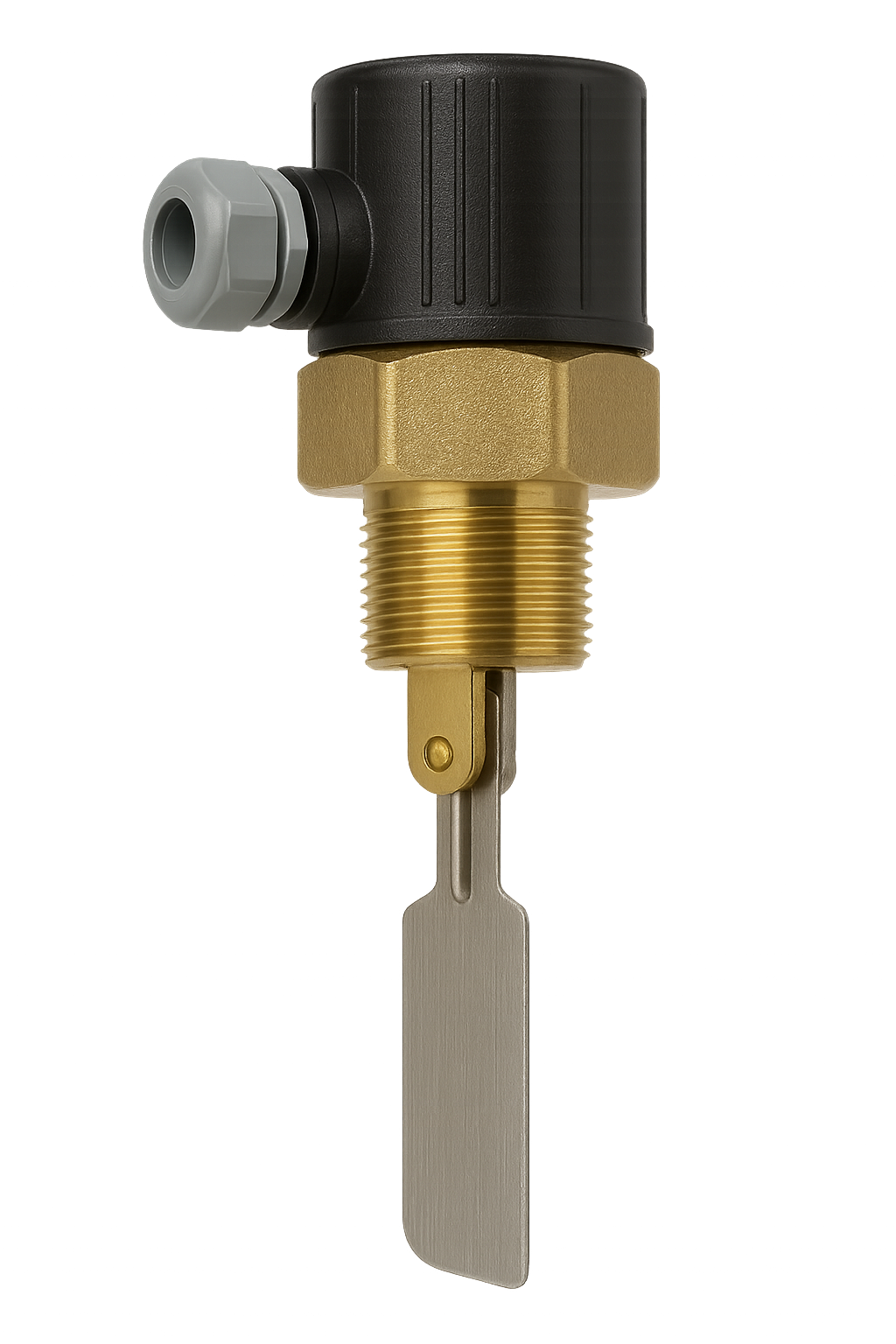

Paddle Type Flow Switch
Category : FLOW
Sub Category :
Flow Switch
Share:
SPECIFICATION
| Paddle Type Flow Switch | |
| Enclosure | Engineering Plastic |
| Ingress Protection | IP-55 |
| Paddle Material | SS 304 supplied in 5 piece packages in size of 1”, 2”, 3” 5” & 6” for Paddles only |
| Paddle Link | Brass |
| Bellow Material | Phosphorus Bronze |
| Base Cover | Mild Steel |
| Max. Pressure | 10 Bar (150 PSI) |
| Operating Temperature | Ambient: 0 … 60'C Process: 0 … 100'C |
| Pipe Connection | SS 1/2” BSP (Female) for 'T' Type ABS 1” NPT (Male) for Paddle Standard / SS (Optional) |
| Set Point | Adjustable on site. Screw provided under top cover |
| Bellow Life | 500000 cycles |
| Switch action | SPDT snap action |
| Electrical rating | 250 V AC, 15 (7.5) Amp, 50/60 Hz |
| Conduit Entry | 22 mm diameter hole for 1/2” conduit |
| Flow range & Unit | 10 … 628 LPM m3/hr, US GPM units available |
| Features | As a safety device against control device failure Do not require center adjustment Save a lot of installation time No leakage problem No welding or adaptor required |
