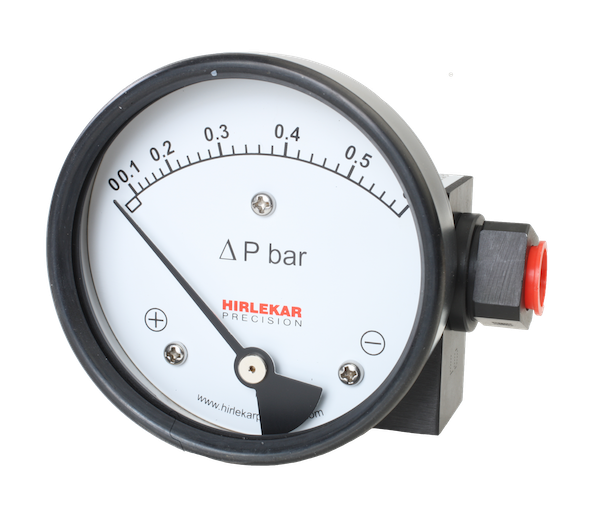

Differential Pressure Gauge
Category : PRESSURE
Sub Category :
Pressure Gauge
Share:
Specification
Piston Operated DP Gauge
| Dial size | Inch: 2, 2.5, 3.5, 4.0, 4.5, 6.0 |
| mm: 50, 63, 80, 100, 115, 150 | |
| Accuracy | ±2% of the FSD (Ascending) |
| Migration | Minor from high to low port |
| Range | 0-0.25 to 0-70 bar |
| 0-5 to 0-1050 psi | |
| First marking on scale | 20% of the FSD |
| Sensing element | Piston |
| Wetted Parts | Body material, SS 302 spring, ceramic magnet & seals |
| Case Material | Stainless steel (SS 304) |
| Mounting | Direct, front flange, 2” pipe & surface mounting |
| Maximum working pressure | Aluminum & Brass: 200 bar |
| SS & Monel : 400 bar | |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass, SS 316 & Monel |
| Seals | Buna-N, Viton & EPDM ‘O’ Rings |
| Window | Standard: Float glass |
| Optional: Toughened glass, acrylic & safety glass | |
| Connection | Standard: ¼” NPT(F) Std |
| Optional: ¼” BSP (F) |
Diaphragm Operated DP Gauge
| Dial size | Inch: 2.5, 3.5, 4.0, 4.5, 6.0 |
| mm: 63, 80, 100, 115, 150 | |
| Accuracy | ±2% of the FSD (Ascending) |
| Migration | Zero Migration from high to low port |
| Range | 0-0.25 to 0-7 bar |
| 0-5 to 0-100 psi | |
| First marking on scale | 15% of the FSD |
| Sensing element | Diaphragm |
| Wetted Parts | Diaphragm, body material, SS 302 spring & ceramic magnet |
| Case Material | Stainless steel (SS 304) |
| Mounting | Direct, front flange, 2” pipe & surface mounting |
| Maximum working pressure | 200 bar / 3000 psi |
| Maximum process temperature | 80°C/ 175°F |
| Body material | Aluminum, Brass & SS 316 |
| Seals | Buna-N, Viton & EPDM |
| Window | Standard: Float glass |
| Optional: Toughened glass, acrylic & safety glass | |
| Connection | Standard: ¼” NPT(F) |
| Optional: ¼” BSP (F) with adaptor | |
| Porting | In-line, rear, bottom, in-line & bottom |
