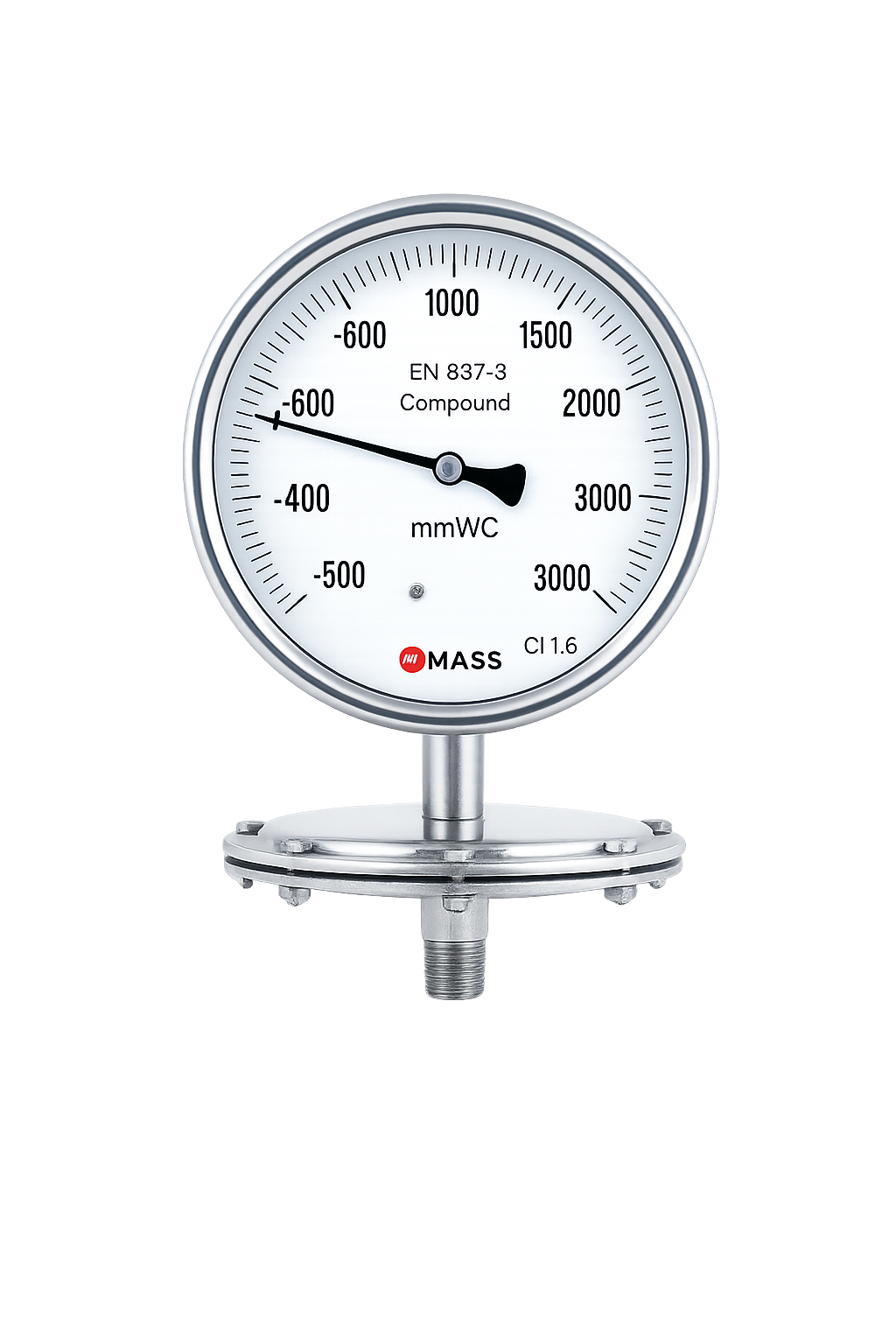

Schaffer Diaphragm Pressure Gauge

Category : PRESSURE

Sub Category : Pressure Gauge

Specification

Standard	ASME B40.100 / EN 837-1 / IS-3624
Dial Size	100 mm (4”), 150 mm (6”)
Features	Low pressure measurement
	Stainless steel construction
	Suitable for gases and liquid application
	Overload protection 130%
	Protection IP54, IP65 and IP66
	Suitable for corrosive environments
	Usable to full scale
Ranges	0 ... 60 mmWC up to 0 ... 6000 mmWC
Construction	Open front cylindrical case, with blow out disc at the back
Measuring principle	Horizontal diaphragm
Connection location	Lower
Pressure connection	Stainless steel 316 optional Stainless steel 316L , PTFE lined
Diaphragm	Stainless steel 316L optional PTFE protected
Case/bayonet ring	Stainless steel 304 optional 316L
Window	Instrument glass, optional laminated safety glass or acrylic glass
Dial	Aluminum, black markings on white background
Pointer	Aluminum, black, optional micrometer adjustment
Movement	Stainless steel
Process connection	1/4” 3/8” 1/2” BSP / NPT (M) , M20x1.5 (M) Others on request
Overpressure limit	130 % F.S., short time.
Accuracy	1.6 % F.S.
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Medium temperature	Max. 100 °C (212 °F)
Storage temperature	-40 ... 65 °C (-40 ... 150 °F)
Effect	Max. 0,5 % / 10 K
Protection according	IP54, Optional IP65, IP66
Accessories, options	Valves, dampener, gauge saver, etc.
