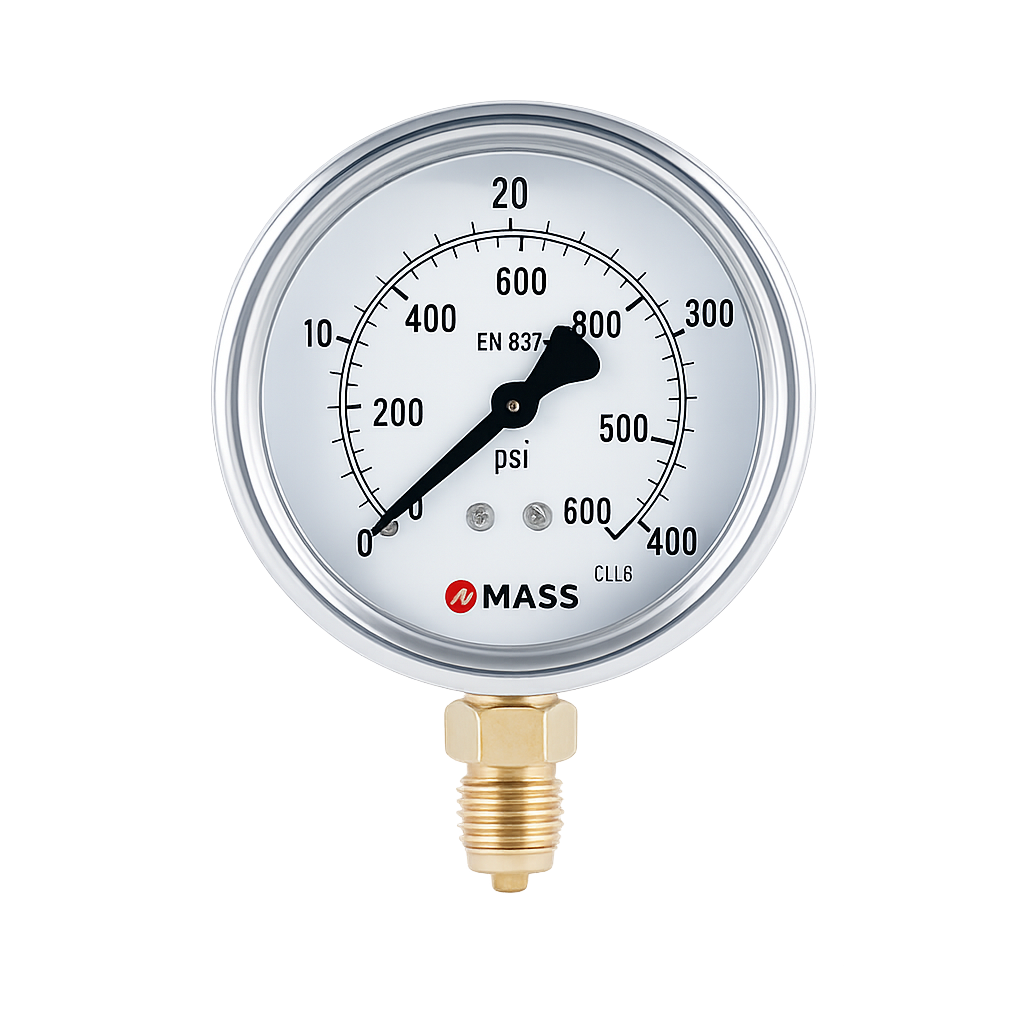

SS Brass Pressure Gauge
Category : PRESSURE
Sub Category :
Pressure Gauge
Share:
Specification
| Standard | ASME B40.100 / EN 837-1 / IS-3624 |
| Dial Size | 63 mm (2.5”), 100 mm (4”) |
| Features | Twin o-ring design for leak tight enclosure |
| Protection | IP65 |
| Scale | Usable to full scale |
| Overload protection | 130% |
| Case Filling | Glycerine, , silicone, others on request |
| Ranges | .-1 ... 0 bar up to 0 ... 400 bar & kg/cm2 |
| Construction | Open front cylindrical case with crimp type bezel ring |
| Measuring principle | Bourdon tube |
| Process connection | 1/8” 1/4” 3/8” 1/2” BSP / NPT (M) |
| Connection location | Lower, back |
| Mounting | Bottom With Panel , Back With Panel & Bracket , Other On Request |
| Pressure Connection | Brass |
| Bourdon tube | SS 316/ Phosphorous Bronze |
| Case/bayonet ring | Stainless steel 304 |
| Window | Acrylic glass |
| Dial | Aluminum, black markings on white background |
| Pointer | Plastic, Black |
| Movement | Brass |
| Accuracy | Class 1.6 (1.6 % F.S.) |
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Medium temperature | Max. 200 °C (392 °F) (dry), max. 100 °C (212 °F) (for liquid filled) |
| Storage temperature | -40 ... 65 °C (-40 ... 150 °F) |
| Effect | Max. 0,3 % / 10 K |
| Protection according | IP65 |
| Filling liquids | Glycerin, silicone, others on request |
| Accessories, options | NACE, diaphragm seals, valves, dampener, gauge saver, syphon etc |
