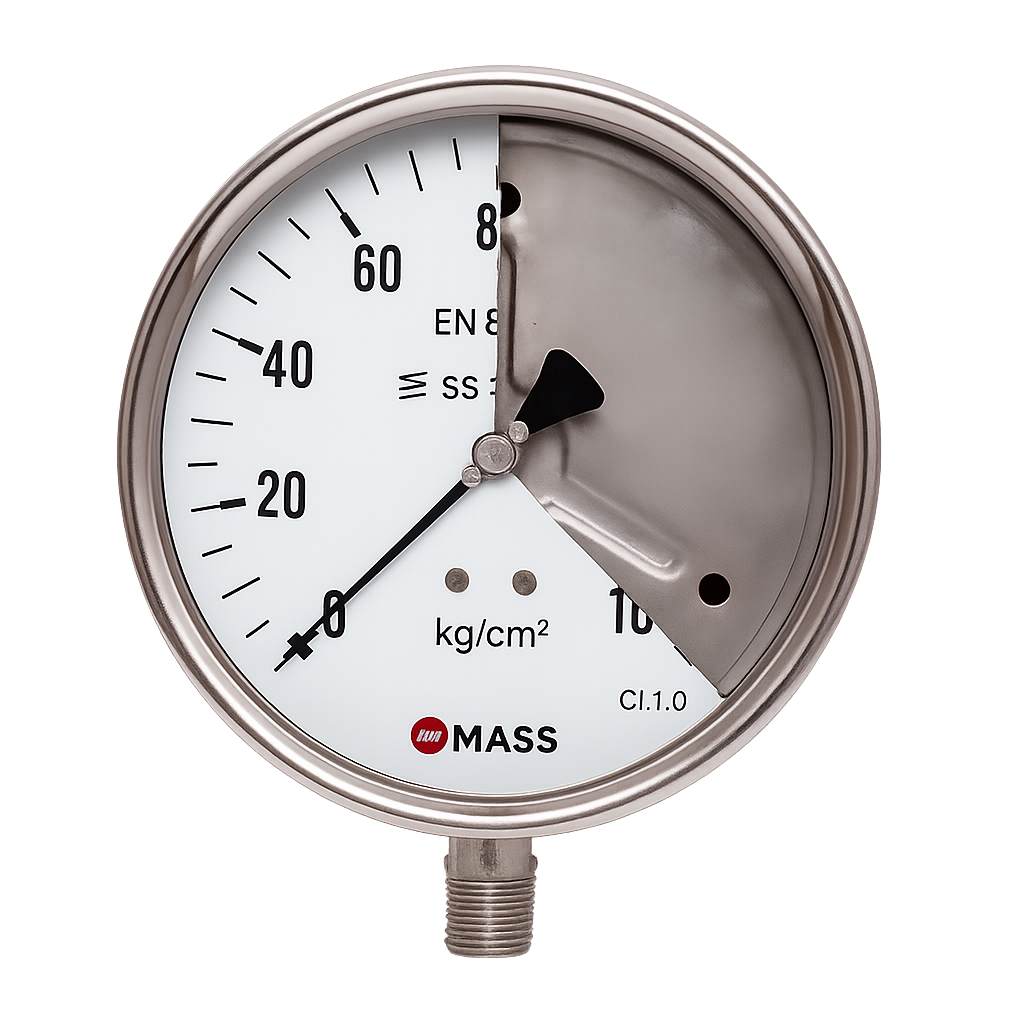

Solid Front Pressure Gauge

Category : PRESSURE

Sub Category : Pressure Gauge

Specification

Standard	ASME B40.100 / EN 837-1 / IS-3624
Dial Size	100 mm (4”), 115 mm (4.5”), 150 mm (6”)
Features	Solid front type construction
Features	Socket and case welded
Overload Protection	130%
Ranges	.-1 ... 0 bar up to 0 ... 2500 bar & kg/cm2
Construction	Solid front safety pattern cylindrical case with blowout at the back
Measuring principle	Bourdon tube
Process connection	1/4” 3/8” 1/2” BSP / NPT (M) , M20x1.5 (M), Others on request
Connection location	Lower, back
Pressure Connection	Stainless steel 316, optional 316L, Monel
Bourdon tube	Stainless steel 316, optional 316L ,Monel, NI SPAN
Case/bayonet ring	Stainless steel 304, optional 316L
Window	laminated safety glass
Dial	Aluminum, black markings on white background, others on request
Pointer	Aluminum, black optional - micrometer adjustment others on request
Movement	Stainless steel 304
Accuracy	Class 1 (1 % F.S.), optional 0,5 % F.S.
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Medium temperature	Max. 200 °C (392 °F) (dry), max. 100 °C (212 °F) (for liquid filled)
Storage temperature	-40 ... 65 °C (-40 ... 150 °F)
Effect	Max. 0,3 % / 10 K
Protection according	IP54 / IP65 / IP66
Filling liquids	Glycerin, silicone, halocarbon, others on request
Options	external Zero Adjustment
Accessories, options	NACE, diaphragm seals, valves, dampener, gauge saver, syphon etc
