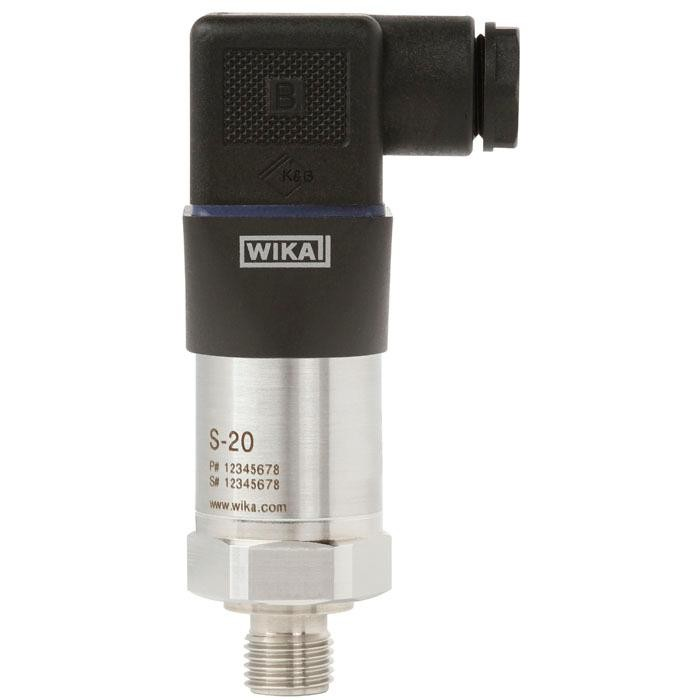

Miniature / Fixed Range Pressure Transmitter
Category : PRESSURE
Sub Category :
Pressure Transmitter
Share:
Specification
| PRESSURE TRANSMITTER | |
| Range | 0 to 400 Bar |
| Accuracy | 0.50% |
| Supply | 8 to 30 VDc |
| Output | 4 to 20 mA, two wire DC 0.5 to 4.5 V, three wire DC 0 to 10 V, three wire DC 1 to 5 V, three wire DC 1 to 6 V, three wire |
| Protection | IP 66 |
| Process connection | G1/8, G1/4, G1/2, , 1/4-18 NPT, 7/16-20 UNF |
| Process Connection Material | CrNi (stainless steel) CrNi 1.4404/1.4435 |
| Membrane Material | Stainless steel 316 L |
| Housing Material | Stainless steel 304 |
| Electrical connection | QUICKON Round plug M12 × 1 Bayonet DIN 72585 Line socket DIN EN 175301-803, Form A Attached cable |
| Accessories, options | NABL calibration |
