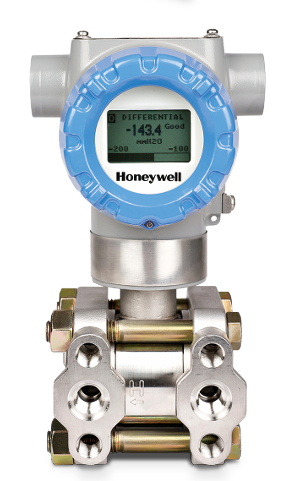

Smart Differential Pressure Transmitter
Category : PRESSURE
Sub Category :
Pressure Transmitter
Share:
Specifiaction
| SMART DIFFERENTIAL PRESSURE TRANSMITTER | |
| Sensor Span Limits / Overpressure | 0 to 160 Bar |
| Maximum working pressure | Standard by design according to sensor range |
| Accuracy | 0.055 % |
| Diaphragm material | AISI 316L SST (1.4404) / NACE Hastelloy C-276 / NACE AISI 316L SST gold-plated / NACE H-Shield (AISI 316L SST) (PENDING) |
| Fill Fluid | Silicone oil |
| Process Connection Material | AISI 316L SST (1.4404) / NACE Hastelloy C-276 / NACE |
| Process Connection Size | 1/4 in - 18 NPT female direct (horizontal connection) 1/2 in -14 NPT female through adapter (horizontal connection) 1/4 in -18 NPT female direct (vertical connection) 1/2 in -14 NPT female through adapter (vertical connection) |
| Bolt / Gasket Material | AISI 316 ss (Nace non exposed) / Viton AISI 316 ss (Nace non exposed) / PTFE AISI 316 ss / Viton (MWP = 16 MPa / 160 bar / 2320 psi) (NACE) (Pending) AISI 316 ss / PTFE (MWP = 16 MPa / 160 bar / 2320 psi) (NACE) (Pending) Alloy steel / Viton (NACE) (PENDING) Alloy steel / PTFE (NACE) (PENDING) |
| Housing Material / Electrical Connection | Aluminium alloy (Barrel type) / 1/2-14 NPT Aluminium alloy (Barrel type) / M20 x 1.5 AISI 316L SST (Barrel type) / 1/2-14 NPT AISI 316L SST (Barrel type) / M20 x 1.5 |
| Protocol/Output | HART digital communication and 4 to 20 mA - Including Easy Set up WirelessHART- Includes External push buttons (Options requested by “Additional ordering code”) |
| Display | Integrated digital LCD display / 2-button keypad Integrated digital LCD display with backlight / 2-button keypad (external pushbuttons enabled) Integrated digital LCD display with backlight / 4-button keypad |
| Mounting Bracket | For horizontal or vertical mounting on pipe and wall / AISI 316L (1.4401) For horizontal or vertical mounting on pipe and wall / carbon steel (Not suitable for AISI housing) |
| Software Application | Calibration Range and/or Tag adjusted to customer specification |
